Product Details

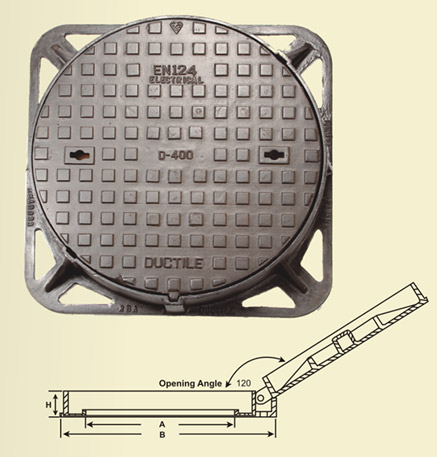

Circular Cover Square Frame
Heavy-duty ductile iron manhole cover system for municipal, highway, drainage and utility infrastructure. Available in multiple clear opening sizes with EN-124 load class options.
Products are available between a load bearing capacity of 1.5MT (A-15) to 90 MT (F-900).
Products are as per EN-124.
Products are available in special types of locking system on customer’s request.
Available in both hinged and non-hinged system.
Available in both single seal and double seal.
Guaranteed load bearing capacity.
Available in special coating on customer’s request.
Products are strong and highly durable.
Customised sizes can be developed.
| Item Code | Size (mm) | Grade | Frame Dimensions (mm) | ||
|---|---|---|---|---|---|
| Clear Opening A |
Frame Outer B |
Height H |
|||
| MCS-006(L) | 500 | D-400 | 500 | 760 x 760 | 76 |
| MCS-033(A) | 600 | D-400 | 600 | 720 x 720 | 100 |
| MCS-033(B) | 600 | B-125 | 600 | 700 x 700 | 45 |
| MCS-001(A) | 675 | D-400 | 675 | 750 x 750 | 100 |
| MCS-011(T) | 800 | D-400 | 800 | 1050 x 1050 | 100 |
| MCS-011(N) | 900 | D-400 | 900 | 1050 x 1050 | 100 |
Download Technical Data Sheet
Get the PDF datasheet with product overview, sizing information and project support details.
Download PDF
